Backup your systems with urBackup

In addition to my ZFS snapshots I decided to implement a secondary backup system. I decided to land on urbackup for ease of use and, more importantly, it was easier to set up.

Server Install

Assuming a Cent-based system:

cd /etc/yum.repos.d/
sudo wget http://download.opensuse.org/repositories/home:uroni/CentOS_7/home:uroni.repo
sudo yum -y install urbackup-server
sudo systemctl enable urbackup-server
sudo systemctl start urbackup-server

Open up necessary ports for the server:

sudo firewall-cmd --add-port=55413-55415/tcp --permanent
sudo systemctl reload firewalld

By default urbackup listens on port 55414 for connections. You can change this to port 80 and/or 443 for HTTPS by installing nginx and having it proxy the connections for you.

sudo yum -y install nginx
sudo systemctl enable nginx
sudo setsebool -P httpd_can_network_connect 1 #if you're using selinux

Copy the following into /etc/nginx/conf.d/urbackup.conf (make sure to change server_name to suit your needs)

server {
        server_name backup;

        location / {
                proxy_pass http://localhost:55414/;
        }
}

Then start nginx:

sudo systemctl start nginx

You should then be able to access the urbackup console by navigating to the IP / hostname of your backup server in a browser.

Client Install:

Urbackup can use a snapshot system known as dattobd. You should use it if you can in order to get more consistent backups, otherwise urbackup will simply copy files from the host which isn’t always desirable (databases, for example)

Install dattobd (optional):

sudo yum -y update
# reboot if your kernel ends up being updated
sudo yum -y localinstall https://cpkg.datto.com/datto-rpm/repoconfig/datto-el-rpm-release-$(rpm -E %rhel)-latest.noarch.rpm
sudo yum -y install dkms-dattobd dattobd-utils

Install urbackup client:

TF=`mktemp` && wget "https://hndl.urbackup.org/Client/2.1.15/UrBackup%20Client%20Linux%202.1.15.sh" -O $TF && sudo sh $TF; rm $TF
#Select dattobd when prompted if desired

Configure Firewall:

sudo firewall-cmd --add-port=35621-35623/tcp --permanent
sudo systemctl reload firewalld

Once a client is installed, assuming they’re on the same network as the backup server, they will automatically add themselves and begin backing up. If they don’t show up it’s usually a firewall issue.

Restore

Restoration of individual files is easily done through the web console. If you have a windows system, restoring from an image backup is also easy.

Linux hosts

Recovery is trickier if you want to restore a Linux system. Install an empty system of same distribution. Give it the same hostname. Install the client as outlined above, then run:

sudo /usr/local/bin/urbackupclientctl restore-start -b last

Troubleshooting

If for some reason the client not showing up after removing it from the GUI: Uninstall & re-install client software

sudo /usr/local/sbin/uninstall_urbackupclient
TF=`mktemp` && wget "https://hndl.urbackup.org/Client/2.1.15/UrBackup%20Client%20Linux%202.1.15.sh" -O $TF && sudo sh $TF; rm $TF

Install wordpress on CentOS7 with nginx & caching

Lately I’ve become interested in the LEMP stack (as opposed to the LAMP stack.) As such I’ve decided to set up a wordpress site running CentOS 7, nginx, mariadb, php-fpm, zend-opcache, apc, and varnish. This writeup will borrow heavily from two of my other writeups, Install Wordpress on CentOS 7 with  SELinux and Speed up WordPress in CentOS7 using caching. This will be a mashup of those two with an nginx twist with guidance from digitalocean. Let’s begin.

Repositories

To install the required addons we will need to have the epel repository enabled:

yum -y install epel-release

nginx

Install necessary packages:

sudo yum -y install nginx
sudo systemctl enable nginx

Optional: symlink /usr/share/nginx/ to /var/www/ (for those of us who are used to apache)

sudo ln -s /usr/share/nginx/ /var/www

Open necessary firewall ports:

sudo firewall-cmd --add-service=http --permanent
sudo systemctl restart firewalld

start nginx:

sudo systemctl start nginx

Navigate to your new site to make sure it brings up the default page properly.

MariaDB

Install:

sudo yum -y install mariadb-server mariadb
sudo systemctl enable mariadb

Run initial mysql configuration to set database root password

sudo systemctl start mariadb
sudo mysql_secure_installation

Configure:

Create a wordpress database and user:

mysql -u root -p
#enter your mysql root password here
create user wordpress;
create database wordpress;
GRANT ALL PRIVILEGES ON wordpress.* To 'wordpress'@'localhost' IDENTIFIED BY 'password';
quit;

php-fpm

Install:

sudo yum -y install php-fpm php-mysql php-pclzip
sudo systemctl enable php-fpm

Configure:

Uncomment cgi.fix_pathinfo and change value to 0:

sudo sed -i 's/\;\(cgi.fix_pathinfo=\)1/\10/g' /etc/php.ini

Modify the listen= parameter to listen to UNIX socket instead of TCP:

sudo sed -i 's/\(listen =\).*/\1 \/var\/run\/php-fpm\/php-fpm.sock/g' /etc/php-fpm.d/www.conf

Change listen.owner and listen.group to nobody:

sudo sed -i 's/\(listen.owner = \).*/\1nobody/g; s/\(listen.group = \).*/\1nobody/g' /etc/php-fpm.d/www.conf

Change running user & group from apache to nginx:

sudo sed -i 's/\(^user = \).*/\1nginx/g; s/\(^group = \).*/\1nginx/g' /etc/php-fpm.d/www.conf

Start php-fpm:

sudo systemctl start php-fpm

Caching

To speed up wordpress further we need to install a few bits of caching software. Accept defaults when prompted.

zend-opcache & apc:

Install necessary packages:

sudo yum -y install php-pecl-zendopcache php-pecl-apcu php-devel gcc
sudo pecl install apc

Add apc extension to php configuration:

sudo sh -c "echo '\

#Add apc extension
extension=apc.so' >> /etc/php.ini"

Restart php-fpm:

sudo systemctl restart php-fpm

Varnish

Install:

sudo yum -y install varnish
sudo systemctl enable varnish

Configure nginx to listen on port 8080 instead of port 80:

sudo sed -i /etc/nginx/nginx.conf -e 's/listen.*80/&80 /'

Change varnish to listen on port 80 instead of port 6081:

sudo sed -i /etc/varnish/varnish.params -e 's/\(VARNISH_LISTEN_PORT=\).*/\180/g'

Optional: change varnish to cache files in memory with a limit of 256M (caching to memory is much faster than caching to disk)

sudo sed -i /etc/varnish/varnish.params -e 's/\(VARNISH_STORAGE=\).*/\1\"malloc,256M\"/g'

Add varnish configuration to work with caching wordpress sites:

sudo sh -c 'echo "/* SET THE HOST AND PORT OF WORDPRESS
 * *********************************************************/
vcl 4.0;
import std;

backend default {
 .host = \"127.0.0.1\";
 .port = \"8080\";
 .first_byte_timeout = 60s;
 .connect_timeout = 300s;
}

# SET THE ALLOWED IP OF PURGE REQUESTS
# ##########################################################
acl purge {
 \"localhost\";
 \"127.0.0.1\";
}

#THE RECV FUNCTION
# ##########################################################
sub vcl_recv {

# set realIP by trimming CloudFlare IP which will be used for various checks
set req.http.X-Actual-IP = regsub(req.http.X-Forwarded-For, \"[, ].*$\", \"\");

 # FORWARD THE IP OF THE REQUEST
 if (req.restarts == 0) {
 if (req.http.x-forwarded-for) {
 set req.http.X-Forwarded-For =
 req.http.X-Forwarded-For + \", \" + client.ip;
 } else {
 set req.http.X-Forwarded-For = client.ip;
 }
 }

 # Purge request check sections for hash_always_miss, purge and ban
 # BLOCK IF NOT IP is not in purge acl
 # ##########################################################

 # Enable smart refreshing using hash_always_miss
if (req.http.Cache-Control ~ \"no-cache\") {
 if (client.ip ~ purge) {
 set req.hash_always_miss = true;
 }
}

if (req.method == \"PURGE\") {
 if (!client.ip ~ purge) {
 return(synth(405,\"Not allowed.\"));
 }

 ban (\"req.url ~ \"+req.url);
 return(synth(200,\"Purged.\"));

}

if (req.method == \"BAN\") {
 # Same ACL check as above:
 if (!client.ip ~ purge) {
 return(synth(403, \"Not allowed.\"));
 }
 ban(\"req.http.host == \" + req.http.host +
 \" && req.url == \" + req.url);

 # Throw a synthetic page so the
 # request wont go to the backend.
 return(synth(200, \"Ban added\"));
}

# Unset cloudflare cookies
# Remove has_js and CloudFlare/Google Analytics __* cookies.
 set req.http.Cookie = regsuball(req.http.Cookie, \"(^|;\s*)(_[_a-z]+|has_js)=[^;]*\", \"\");
 # Remove a \";\" prefix, if present.
 set req.http.Cookie = regsub(req.http.Cookie, \"^;\s*\", \"\");

 # For Testing: If you want to test with Varnish passing (not caching) uncomment
 # return( pass );

# DO NOT CACHE RSS FEED
 if (req.url ~ \"/feed(/)?\") {
 return ( pass );
}

#Pass wp-cron

if (req.url ~ \"wp-cron\.php.*\") {
 return ( pass );
}

## Do not cache search results, comment these 3 lines if you do want to cache them

if (req.url ~ \"/\?s\=\") {
 return ( pass );
}

# CLEAN UP THE ENCODING HEADER.
 # SET TO GZIP, DEFLATE, OR REMOVE ENTIRELY. WITH VARY ACCEPT-ENCODING
 # VARNISH WILL CREATE SEPARATE CACHES FOR EACH
 # DO NOT ACCEPT-ENCODING IMAGES, ZIPPED FILES, AUDIO, ETC.
 # ##########################################################
 if (req.http.Accept-Encoding) {
 if (req.url ~ \"\.(jpg|png|gif|gz|tgz|bz2|tbz|mp3|ogg)$\") {
 # No point in compressing these
 unset req.http.Accept-Encoding;
 } elsif (req.http.Accept-Encoding ~ \"gzip\") {
 set req.http.Accept-Encoding = \"gzip\";
 } elsif (req.http.Accept-Encoding ~ \"deflate\") {
 set req.http.Accept-Encoding = \"deflate\";
 } else {
 # unknown algorithm
 unset req.http.Accept-Encoding;
 }
 }

 # PIPE ALL NON-STANDARD REQUESTS
 # ##########################################################
 if (req.method != \"GET\" &&
 req.method != \"HEAD\" &&
 req.method != \"PUT\" &&
 req.method != \"POST\" &&
 req.method != \"TRACE\" &&
 req.method != \"OPTIONS\" &&
 req.method != \"DELETE\") {
 return (pipe);
 }

 # ONLY CACHE GET AND HEAD REQUESTS
 # ##########################################################
 if (req.method != \"GET\" && req.method != \"HEAD\") {
 return (pass);
 }

 # OPTIONAL: DO NOT CACHE LOGGED IN USERS (THIS OCCURS IN FETCH TOO, EITHER
 # COMMENT OR UNCOMMENT BOTH
 # ##########################################################
 if ( req.http.cookie ~ \"wordpress_logged_in|resetpass\" ) {
 return( pass );
 }

 #fix CloudFlare Mixed Content with Flexible SSL
 if (req.http.X-Forwarded-Proto) {
 return(hash);
 }

 # IF THE REQUEST IS NOT FOR A PREVIEW, WP-ADMIN OR WP-LOGIN
 # THEN UNSET THE COOKIES
 # ##########################################################
 if (!(req.url ~ \"wp-(login|admin)\")
 && !(req.url ~ \"&preview=true\" )
 ){
 unset req.http.cookie;
 }

 # IF BASIC AUTH IS ON THEN DO NOT CACHE
 # ##########################################################
 if (req.http.Authorization || req.http.Cookie) {
 return (pass);
 }

 # IF YOU GET HERE THEN THIS REQUEST SHOULD BE CACHED
 # ##########################################################
 return (hash);
 # This is for phpmyadmin
if (req.http.Host == \"pmadomain.com\") {
return (pass);
}
}

sub vcl_hash {

if (req.http.X-Forwarded-Proto) {
 hash_data(req.http.X-Forwarded-Proto);
 }
}


# HIT FUNCTION
# ##########################################################
sub vcl_hit {
 return (deliver);
}

# MISS FUNCTION
# ##########################################################
sub vcl_miss {
 return (fetch);
}

# FETCH FUNCTION
# ##########################################################
sub vcl_backend_response {
 # I SET THE VARY TO ACCEPT-ENCODING, THIS OVERRIDES W3TC
 # TENDANCY TO SET VARY USER-AGENT. YOU MAY OR MAY NOT WANT
 # TO DO THIS
 # ##########################################################
 set beresp.http.Vary = \"Accept-Encoding\";

 # IF NOT WP-ADMIN THEN UNSET COOKIES AND SET THE AMOUNT OF
 # TIME THIS PAGE WILL STAY CACHED (TTL), add other locations or subdomains you do not want to cache here in case they set cookies
 # ##########################################################
 if (!(bereq.url ~ \"wp-(login|admin)\") && !bereq.http.cookie ~ \"wordpress_logged_in|resetpass\" ) {
 unset beresp.http.set-cookie;
 set beresp.ttl = 1w;
 set beresp.grace =3d;
 }

 if (beresp.ttl <= 0s ||
 beresp.http.Set-Cookie ||
 beresp.http.Vary == \"*\") {
 set beresp.ttl = 120 s;
 # set beresp.ttl = 120s;
 set beresp.uncacheable = true;
 return (deliver);
 }

 return (deliver);
}

# DELIVER FUNCTION
# ##########################################################
sub vcl_deliver {
 # IF THIS PAGE IS ALREADY CACHED THEN RETURN A HIT TEXT
 # IN THE HEADER (GREAT FOR DEBUGGING)
 # ##########################################################
 if (obj.hits > 0) {
 set resp.http.X-Cache = \"HIT\";
 # IF THIS IS A MISS RETURN THAT IN THE HEADER
 # ##########################################################
 } else {
 set resp.http.X-Cache = \"MISS\";
 }
}" > /etc/varnish/default.vcl'

Restart varnish & nginx:

sudo systemctl restart nginx varnish

Logging

By default varnish does not log its traffic. This means that your apache log will only log things varnish does not cache. We have to configure varnish to log traffic so you don’t lose insight into who is visiting your site.

Update 2/14/2017:  I’ve discovered a better way to do this. The old way is still included below, but you really should use this other way.

New way:

CentOS ships with some systemd scripts for you. You can use them out of the box by simply issuing

systemctl start varnishncsa
systemctl enable varnishncsa

If you are behind a reverse proxy then you will want to tweak the varnishncsa output a bit to reflect x-forwarded-for header values (thanks to this github discussion for the guidance.) Accomplish this by appending a modified log output format string to /lib/systemd/system/varnishncsa.service:

sudo sed -i /lib/systemd/system/varnishncsa.service -e "s/ExecStart.*/& -F \'%%{X-Forwarded-For}i %%l %%u %%t \"%%r\" %%s %%b \"%%{Referer}i\" \"%%{User-agent}i\"\' /g"

Lastly, reload systemd configuration, enable, and start the varnishncsa service:

sudo systemctl daemon-reload
sudo systemctl enable varnishncsa
sudo systemctl start varnishncsa




Old way:

First, enable rc.local

sudo chmod +x /etc/rc.local
sudo systemctl enable rc-local

Next, add this entry to the rc.local file:

sudo sh -c 'echo "varnishncsa -a -w /var/log/varnish/access.log -D -P /var/run/varnishncsa.pid" >> /etc/rc.local'

If your varnish server is behind a reverse proxy (like a web application firewall) then modify the above code slightly (thanks to this site for the information on how to do so)

sudo sh -c "echo varnishncsa -a -F \'%{X-Forwarded-For}i %l %u %t \"%r\" %s %b \"%{Referer}i\" \"%{User-agent}i\"\' -w /var/log/varnish/access.log -D -P /var/run/varnishncsa.pid >> /etc/rc.local"

Once configuration is in place, start the rc-local service

sudo systemctl start rc-local

WordPress

Download, extract, and set permissions for your wordpress installation (this assumes your wordpress site is the only site on the server)

wget https://wordpress.org/latest.zip
sudo unzip latest.zip -d /usr/share/nginx/html/
sudo chown nginx:nginx -R /usr/share/nginx/html/

Configure nginx

Follow best practice for nginx by creating a new configuration file for your wordpress site. In this example I’ve created a file wordpress.conf inside the /etc/nginx/conf.d directory.

Create the file:

sudo vim /etc/nginx/conf.d/wordpress.conf

Insert the following, making sure to modify the server_name directive:

server {
    listen 8080;
    listen [::]:8080;
    server_name wordpress;
    root /usr/share/nginx/html/wordpress;
    port_in_redirect off;


    location / {
        index index.php;
        try_files $uri $uri/ /index.php?q=$uri&$args;
    }

    location ~ \.php$ {
        fastcgi_pass unix:/var/run/php-fpm/php-fpm.sock;
        fastcgi_index index.php;
        fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
        include fastcgi_params;
    }

    error_page 404 /404.html;
    location = /40x.html {
     }

    error_page 500 502 503 504 /50x.html;
    location = /50x.html {
    }
}

Restart nginx

sudo systemctl restart nginx

Configure upload directory

If you want users to upload content, then you will want to assign the http_sys_rw_content_t selinux security context for the wp-uploads directory (create it if it doesn’t exist)

sudo mkdir /usr/share/nginx/html/wordpress/wp-content/uploads
sudo chown nginx:nginx /usr/share/nginx/html/wordpress/wp-content/uploads
sudo semanage fcontext -a -t httpd_sys_rw_content_t "/usr/share/nginx/html/wordpress/wp-content/uploads(/.*)?"
sudo restorecon -Rv /usr/share/nginx/html/wordpress/wp-content/uploads

Run the wizard

In order for the wizard to run properly we need to temporarily give the wordpress directory httpd_sys_rw_content_t selinux context

sudo chcon -t httpd_sys_rw_content_t /usr/share/nginx/html/wordpress/

Now navigate to your new website in a browser and follow the wizard, which will create a wp-config.php file inside the wordpress directory.

W3 Total Cache

Once your wordpress site is set up you will want to configure it to communicate with varnish. This will make sure the cache is always up to date when changes are made.

Install the W3 Total Cache wordpress plugin and configure it as follows:

opcode-database-object

Opcode cache: Opcode:Zend Opcache

Database cache: Check enable, select Opcode: Alternative PHP Cache (APC / APCu)

Object cache: Check enable, select Opcode: Alternative PHP Cache (APC / APCu)

Fragment cache: Opcode: Alternative PHP cache (APC / APCu)

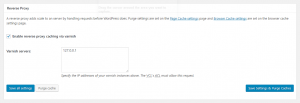

proxy

Reverse Proxy: Check “Enable reverse proxy caching via varnish”
Specify 127.0.0.1 in the varnish servers box. Click save all settings.

Wrapping up

Once your site is properly set up, restore the original security context for the wordpress directory:

sudo restorecon -v /usr/share/nginx/html/wordpress/

Lastly restart nginx and varnish:

sudo systemctl restart nginx varnish

Success! Everything is working within the proper SELinux contexts and caching configuration.

Troubleshooting

403 forbidden

I received this error after setting everything up. After some digging I came across this site which explained what could be happening.

For me this meant that nginx couldn’t find an index file and was trying to default to a directory listing, which is not allowed by default. This is fixed by inserting a proper directive to find index files, in my case, index.php. Make sure you have “index index.php” in your nginx.conf inside the location / block:

    location / {
        index index.php;
    }

 Accessing wp-admin redirects you to port 8080, times out

If you find going to /wp-admin redirects you to a wrong port and times out, it’s because nginx is forwarding the portnumber. We want to turn that off (thanks to this site for the help.) Add this to your nginx.conf:

  port_in_redirect off;

Rename LVM group in CentOS7

I recently made the discovery that all my VMs have the same volume group name – the default that is given when CentOS is installed. My OCD got the best of me and I set out to change these names to reflect the hostname. The problem is if you rename the volume group containing the root partition, the system will not boot.

The solution is to run a series of commands to get things updated. Thanks to the centOS forums for the information. In my case I had already made the mistake of renaming the group and ending up with an unbootable system. This is what you have to do to get it working again:

Boot into a Linux rescue shell (from the installer DVD, for example) and activate the volume groups (if not activated by default)

vgchange -ay

Mount the root and boot volumes (replace VG_NAME with name of your volume group and BOOT_PARTITION with the device name of your boot partition, typically sda1)

mount /dev/VG_NAME/root /mnt
mount /dev/BOOT_PARTITION /mnt/boot

Mount necessary system devices into our chroot:

mount --bind /proc /mnt/proc
mount --bind /dev /mnt/dev
mount --bind /sys /mnt/sys

Chroot into our broken system:

chroot /mnt/ /bin/bash

Modify fstab and grub files to reflect new volume group name:

sed -i /etc/fstab -e 's/OLD_VG_NAME/NEW_VG_NAME/g'
sed -i /etc/default/grub -e 's/OLD_VG_NAME/NEW_VG_NAME/g'
sed -i /boot/grub2/grub.cfg -e 's/OLD_VG_NAME/NEW_VG_NAME/g'

Run dracut to modify boot images:

dracut -f

Remove your recovery boot CD and reboot into your newly fixed VM

exit
reboot

If you want to avoid having to boot into a recovery environment, do the following steps on the machine whose VG you want to rename:

Rename the volume group:

vgrename OLD_VG_NAME NEW_VG_VAME

Modify necessary boot files to reflect the new name:

sed -i /etc/fstab -e 's/OLD_VG_NAME/NEW_VG_NAME/g'
sed -i /etc/default/grub -e 's/OLD_VG_NAME/NEW_VG_NAME/g'
sed -i /boot/grub2/grub.cfg -e
's/OLD_VG_NAME/NEW_VG_NAME/g'

Rebuild boot images:

dracut -f

Speed up WordPress in CentOS7 using caching

It has recently come to my attention that WordPress has a serious design flaw: it’s trivially easy to execute a denial of service attack against it in its default state. One simply has to hold down F5 to cause the site to slow to a crawl and in many cases crash entirely.

The reason behind this is that every single page request turns into the server parsing PHP code and executing a database call. Holding down F5 initiates hundreds of page view requests, which turn into hundreds of PHP code execution threads (each taking up CPU and memory) and hundreds of database calls. The server becomes quickly overwhelmed and runs out of resources.

The solution to this problem (on CentOS 7 at least) is a combination of php-fpm, zendopcache, APC, varnish and W3 Total Cache. It’s definitely more complicated but it eliminates this problem and massively increases site load times and general responsiveness.

Repositories

To install the required addons we will need to have the epel repository enabled:

yum -y install epel-release

zend-opcache

This caches PHP opcode to greatly speed up PHP code execution. It’s included in later versions of PHP but alas CentOS 7 is stuck on PHP 5.4, which does not include such caching. You have to install it manually. Thanks to this site for the information.

sudo yum -y install php-pecl-zendopcache

apc

This is another kind of of cache – this time for database operations.

sudo yum -y install php-pecl-apcu php-devel gcc
sudo pecl install apc
#accept defaults when prompted

php-fpm

php-fpm is a different way to serve up PHP code. Instead of apache running a module to interpret php code, it will send all php requests to a separate PHP server, optimized for speed. That php server will interpret the code and return the results to your browser.

sudo yum -y install php-fpm
sudo systemctl enable php-fpm

Modify your apache config to forward all php requests to php-fpm. Be sure to modify this to match your site URL setup:

sudo sh -c "echo '
    <LocationMatch \"^/(.*\.php(/.*)?)$\">
        ProxyPass fcgi://127.0.0.1:9000/var/www/html/\$1
    </LocationMatch>' >> /etc/httpd/conf/httpd.conf"

Varnish

Varnish is a reverse proxy server optimized for caching pages. It sits between your visitors and your webserver and caches whatever it can to increase responsiveness and speed. This site pointed me in the right direction for configuring Varnish  in CentOS 7.

sudo yum -y install varnish
sudo systemctl enable varnish

Change apache to listen on port 8080 instead of port 80:

sudo sed -i /etc/httpd/conf/httpd.conf -e 's/Listen 80/&80/'

Change varnish to listen on port 80 instead of port 6081:

sudo sed -i /etc/varnish/varnish.params -e 's/VARNISH_LISTEN_PORT=6081/VARNISH_LISTEN_PORT=80/g'

Now we need to configure Varnish to properly cache wordpress sites. I found the configuration from this site to be the most helpful. I normally include code blocks to copy and paste but the configuration file is pretty big.

Instead, click here for the configuration code, then copy the whole page and paste it into your terminal.

Update 12/28/2016: I’ve updated the varnish configuration code slightly to allow the “purge all caches” button of W3 Total cache to work. Thanks to this site for pointing me in the right direction and this thread for getting me there.

After varnish has been configured, restart your new PHP / caching stack:

sudo systemctl restart httpd varnish php-fpm

Logging

Update: added this section on 11/4/2016

By default varnish does not log its traffic. This means that your apache log will only log things varnish does not cache. We have to configure varnish to log traffic so you don’t lose insight into who is visiting your site.

Update 2/14/2017:  I’ve discovered a better way to do this. The old way is still included below, but you really should use this other way.

New way:

CentOS ships with some systemd scripts for you. You can use them out of the box by simply issuing

systemctl start varnishncsa
systemctl enable varnishncsa

If you are behind a reverse proxy then you will want to tweak the varnishncsa output a bit to reflect x-forwarded-for header values (thanks to this github discussion for the guidance.) Accomplish this by appending a modified log output format string to /lib/systemd/system/varnishncsa.service:

sudo sed -i /lib/systemd/system/varnishncsa.service -e "s/ExecStart.*/& -F \'%%{X-Forwarded-For}i %%l %%u %%t \"%%r\" %%s %%b \"%%{Referer}i\" \"%%{User-agent}i\"\' /g"

Lastly, reload systemd configuration, enable, and start the varnishncsa service:

sudo systemctl daemon-reload
sudo systemctl enable varnishncsa
sudo systemctl start varnishncsa

Old way:

First, enable rc.local

sudo chmod +x /etc/rc.local
sudo systemctl enable rc-local #you can ignore errors here

Next, add this entry to the rc.local file:

sudo sh -c 'echo "varnishncsa -a -w /var/log/varnish/access.log -D -P /var/run/varnishncsa.pid" >> /etc/rc.local'

If your varnish server is behind a reverse proxy (like a web application firewall) then modify the above code slightly (thanks to this site for the information on how to do so)

sudo sh -c "echo varnishncsa -a -F \'%{X-Forwarded-For}i %l %u %t \"%r\" %s %b \"%{Referer}i\" \"%{User-agent}i\"\' -w /var/log/varnish/access.log -D -P /var/run/varnishncsa.pid >> /etc/rc.local"

W3 Total Cache

The improvements above will greatly increase your speed and eliminate the F5 denial of service issue. The last bit to make it even sweeter is to install the W3 Total Cache wordpress plugin. Thanks to this site for the information that pointed me in the right direction.

There are a ton of options in W3 Total cache that are beyond the scope of this tutorial. For our purposes we will enable the following options in the General Settings tab of the plugin:

opcode-database-object

Opcode cache: Opcode:Zend Opcache

Database cache: Check enable, select Opcode: Alternative PHP Cache (APC / APCu)

Object cache: Check enable, select Opcode: Alternative PHP Cache (APC / APCu)

proxy

Reverse Proxy: Check “Enable reverse proxy caching via varnish”
Specify 127.0.0.1 in the varnish servers box. Click save all settings.

Full speed ahead

With all of these pieces into place your site is definitely more complicated, but it is also much faster to load. Enjoy.

Troubleshooting

If you go through all these steps only to see this very non-descriptive message:

File not found

it means you have PHP forwarding to the wrong directory. Modify the LocationMatch section you inserted at the bottom of /etc/httpd/conf/httpd.conf earlier to ensure the correct directory structure is passed for php files.

Install WordPress on CentOS 7 with SELinux

I’ve been frustrated lately with the number of tutorials for installing WordPress on CentOS 7 that say to simply turn SELinux off. This is an unacceptable workaround. It’s simply lazy administration. SELinux is not designed to make your job harder (although it can do that pretty well), it’s there to make your system safer.

I have scoured the internet and pieced together bits of information from several sources – mainly here, here, and here to put together a tutorial that walks you through how to install WordPress in CentOS7 while keeping SELinux turned on.

It took a lot of reading to understand SELinux, but once you understand it, it makes a whole lot more sense. Go figure.

Apache

Install required packages:

sudo yum -y install httpd
sudo systemctl enable httpd

Modify apache config to allow mod_rewrite:

sudo sed -i /etc/httpd/conf/httpd.conf -e 's/AllowOverride None/AllowOverride All/g'

Open necessary firewall ports:

sudo firewall-cmd --add-service=http --permanent
sudo systemctl restart firewalld

Start apache:

sudo systemctl start httpd

Navigate to your new site to make sure the testing page comes up.

Update 11/4/2016: If you are behind a reverse proxy such as varnish or a web application firewall, you will want to modify your apache configuration to log x-forwarded-for IPs to make the logs more meaningful:

sudo sed -i /etc/httpd/conf/httpd.conf -e 's/%h/%{X-Forwarded-For}i/g'

MariaDB

Install:

sudo yum -y install mariadb-server mariadb
sudo systemctl enable mariadb

Run initial mysql configuration to set database root password

sudo systemctl start mariadb
sudo mysql_secure_installation

Create a wordpress database and user:

mysql -u root -p
#enter your mysql root password here
create user wordpress;
create database wordpress;
GRANT ALL PRIVILEGES ON wordpress.* To 'wordpress'@'localhost' IDENTIFIED BY 'password';
quit;

WordPress

Install PHP and restart apache

sudo yum -y install php php-mysql php-gd php-ldap php-odbc php-pear php-xml php-xmlrpc php-mbstring php-snmp php-soap curl
sudo systemctl restart httpd

Configure base wordpress directory

Download, extract, and set permissions for your wordpress installation:

wget https://wordpress.org/latest.zip
sudo unzip latest.zip -d /var/www/html
sudo chown apache:apache -R /var/www/html/wordpress

Optional: Change Apache document root so you don’t need to tack /wordpress at the end of the url:

sudo sed -i /etc/httpd/conf/httpd.conf -e 's/DocumentRoot \"\/var\/www\/html/&\/wordpress/g'
sudo systemctl restart httpd

Configure upload directory

If you want users to upload content, then you will want to assign the http_sys_rw_content_t selinux security context for the wp-uploads directory (create it if it doesn’t exist)

sudo mkdir /var/www/html/wordpress/wp-content/uploads
sudo chown apache:apache /var/www/html/wordpress/wp-content/uploads
sudo semanage fcontext -a -t httpd_sys_rw_content_t "/var/www/html/wordpress/wp-content/uploads(/.*)?"
sudo restorecon -Rv /var/www/html/wordpress/wp-content/uploads

Run the wizard

In order for the wizard to run properly we need to temporarily give the wordpress directory httpd_sys_rw_content_t selinux context

sudo chcon -t httpd_sys_rw_content_t /var/www/html/wordpress/

Now navigate to your new website in a browser and follow the wizard, which will create a wp-config.php file inside the wordpress directory. Once your site is properly set up, restore the original security context for the wordpress directory:

sudo restorecon -v /var/www/html/wordpress/

Success! Everything is working within the proper SELinux contexts.

Troubleshooting

Permission denied when accessing /wordpress

The obvious thing to check is to make sure the directory /var/www/html/wordpress has the ownership set to apache. That didn’t fix my issue, though. Thanks to serverfault I narrowed this down to a selinux permissions issue.  Changing the selinux context to httpd_sys_content_t for the wordpress folder fixed the issue.

sudo semanage fcontext -a -t httpd_sys_content_t /var/www/html/wordpress/
sudo restorecon -v /var/www/html/wordpress/

Sorry, but I can’t write the wp-config.php file.

“You can create the wp-config.php manually and paste the following text into it.”

I had a suspicion that writing files was also a selinux issue. This was confirmed when I decided to tail /var/log/audit/audit.log and found this when the wordpress installer tried to write wp-config.php:

type=AVC msg=audit(1475596102.558:16868): avc: denied { write } for pid=5751 comm="httpd" name="wordpress" dev="dm-0" ino=68494934 scontext=system_u:system_r:httpd_t:s0 tcontext=system_u:object_r:httpd_sys_content_t:s0 tclass=dir
type=SYSCALL msg=audit(1475596102.558:16868): arch=c000003e syscall=21 success=no exit=-13 a0=7f9f4b931478 a1=2 a2=0 a3=1 items=0 ppid=5740 pid=5751 auid=4294967295 uid=48 gid=48 euid=48 suid=48 fsuid=48 egid=48 sgid=48 fsgid=48 tty=(none) ses=4294967295 comm="httpd" exe="/usr/sbin/httpd" subj=system_u:system_r:httpd_t:s0 key=(null)

This led me to find this great explanation from francispereira on how to get wordpress and selinux to peacefully coexist. Also thanks to the excellent Redhat Manual for more information on what to do, combined with this very helpful guide from serverlab.

First, we need to temporarily grant httpd_sys_rw_content_t to the wordpress directory. This is to allow the initial wizard to create the wp-config.php file.

sudo chcon -t httpd_sys_rw_content_t /var/www/html/wordpress/

Now you can run the wizard and it will work properly.

Once your site is set up, restore the context to http_sys_content_t

sudo restorecon -v /var/www/html/wordpress/

Resizing LVM storage checklist

This is a short note of what to do when you change size of the physical disk an LVM setup, such as the default configuration in CentOS 7.

  1. Modify the physical disk size
  2. Modify the partition size
    1. I used fdisk to delete the partition, then re-create with a larger size
    2. Reboot
  3. Extend the physical volume size
    1. pvresize <path to enlarged partition>
  4. Extend the logical volume size
    1. lvextend <lv path> -l100%FREE
  5. Extend filesystem size
    1. resize2fs <lv path>
    2. #If you're running CentOS 7, the default filesystem is actually XFS, not ext4. In that case:
      xfs_growfs <lv path>
  6. Profit.

Compile ffmpeg on CentOS 7

Recently I had to compile ffmpeg from scratch on CentOS 7. The reason? I wanted libfdk_aac support. Here are my notes on the procedure. The how-to on https://trac.ffmpeg.org/wiki/CompilationGuide/Centos was actually quite helpful and accurate.

Install necessary dependencies and set up build folder

yum install autoconf automake cmake freetype-devel gcc gcc-c++ git libtool make mercurial nasm pkgconfig zlib-devel
mkdir ~/ffmpeg_sources

Build necessary components
I only needed x264 and libfdk_aac, so that’s all I ended up doing:

#yasm
cd ~/ffmpeg_sources
git clone --depth 1 git://github.com/yasm/yasm.git
cd yasm
autoreconf -fiv
./configure --prefix="$HOME/ffmpeg_build" --bindir="$HOME/bin"
make
make install
make distclean
#libx264
cd ~/ffmpeg_sources
git clone --depth 1 git://git.videolan.org/x264
cd x264
PKG_CONFIG_PATH="$HOME/ffmpeg_build/lib/pkgconfig" ./configure --prefix="$HOME/ffmpeg_build" --bindir="$HOME/bin" --enable-static
make
make install
make distclean
#libfdk_aac
cd ~/ffmpeg_sources
git clone --depth 1 git://git.code.sf.net/p/opencore-amr/fdk-aac
cd fdk-aac
autoreconf -fiv
./configure --prefix="$HOME/ffmpeg_build" --disable-shared
make
make install
make distclean

Compile ffmpeg
I actually specified a git mirror because the sources at ffmpeg site were glacially slow.

cd ~/ffmpeg_sources
git clone https://github.com/FFmpeg/FFmpeg.git
cd FFmpeg
PKG_CONFIG_PATH="$HOME/FFmpeg_build/lib/pkgconfig" ./configure --prefix="$HOME/FFmpeg_build" --extra-cflags="-I$HOME/FFmpeg_build/include" --extra-ldflags="-L$HOME/FFmpeg_build/lib" --bindir="$HOME/bin" --pkg-config-flags="--static" --enable-gpl --enable-nonfree --enable-libfdk-aac  --enable-libx264
make
make install
make distclean
hash -r

Optionally, remove existing ffmpeg

sudo yum remove ffmpeg

That was it! After a bit of compile time ffmpeg worked with the items I wanted it to.

Linux two factor user exception

Two factor authentication is much more security than simply password authentication. There are times, though, that you will want to create an exception for a specific user. In my case, I wanted to allow a vulnerability scanner to scan my systems. Rather than turn  two factor off for the duration of the scan, I set out to learn how to add an exception for a specific user. I accomplished this on CentOS 6 Linux, but it works an any Linux version using PAM.

The solution to my problem is the pam_listfile PAM module. Pam_listfile allows you to specify a text file that contains a list of either users or groups. You then tell PAM what to do with the file (allow, deny) as well as how to handle what to do if it can’t read the file for some reason.

Thanks to this site I learned the details of what to do. In my case I want a single username to not be prompted for a 2nd authentication factor. All other users must use two factors. I created the file /etc/scan_user and added the username I wanted to have the exception:

echo "scanuser" > /etc/scanuser

Then I modified /etc/pam.d/password-auth and placed it after the first authentication factor, but before the second.

vi /etc/pam.d/password-auth
#First authentication factor
auth        required    pam_unix.so

#pam_listfile to check username and see if it's allowed with only one factor or must provide a second
auth        sufficient  pam_listfile.so onerr=fail item=user sense=allow file=/etc/qualys_user

#Second authentication factor. This is only reached if the user is not on the list provided in pam_listfile.
auth        required   pam_google_authenticator.so

The PAM configuration is as follows:

  • First factor required for everyone (pam_unix)
  • pam_listfile sufficient for anyone who matches the provided list.
  • Second factor required for everyone else (anyone who wasn’t on the pam_listfile list

My vulnerability scanner is now happy and I still have two factor authentication enabled for every other user in the system. Success.



Configure HDHR Viewer XMLTV in CentOS Linux

Recently I’ve accomplished the herculean task of setting up my parents’ cable connection to stream through Plex using a HD Homerun 3 cablecard network tuner. It works! This is how I got XMLTV guide working for the HDHR Viewer plugin for Plex on CentOS 7 Linux.

Required reading: http://hdhrviewer.zynine.net/hdhrviewerv2-initial-setup/xmltv-zap2xml/

First, install and configure the required perl and java packages

sudo yum install perl-Compress-Zlib perl-HTML-Parser perl-HTTP-Cookies perl-LWP-Protocol-https perl-JSON gcc cpan java-1.7.0-openjdk-headless
sudo cpan JSON::XS
#accept all defaults when prompted

Download the zap2xml perl module (zap2xml.pl) Place it somewhere it can be easily accessed.

Test to make sure the script will run properly:

perl zap2xml.pl -u <zap2it username> -p <zap2it password>

If you get an error like this:

Can't locate Compress/Zlib.pm in @INC (@INC contains: /usr/local/lib64/perl5 /usr/local/share/perl5 /usr/lib64/perl5/vendor_perl /usr/share/perl5/vendor_perl /usr/lib64/perl5 /usr/share/perl5 .) at zap2xml.pl line 26.

It means you haven’t installed the correct perl modules. Double check that you installed them all.

Once we know it runs properly e need to configure a cron job to run zap2xml daily (to make sure the guide data is always up to date.)

crontab -e
#press i to begin inserting
0 0 * * * perl <full path to where you downloaded zap2xml>/zap2xml.pl -u <zap2it e-mail> -p <zap2it password>
#ESC :wq to save and exit



Next download and unzip the Channel Guide app. I placed it in the same place I downloaded zap2xml to keep things simple.

Test it out to make sure it works:

java -jar channel-guide-app-0.0.3.jar server app-config.yml

If it starts and doesn’t crash, you know it’s working.

Now we want to configure the channel guide app to run on startup

sudo vi /etc/systemd/system/channelguide.service
[Unit]
Description=Plex Channel Guide

[Service]
TimeoutStartSec=0
ExecStart=/usr/bin/java -jar <full path to channel-guide dir>/channel-guide-app-0.0.3.jar server <full path to channel-guide dir>/app-config.yml

[Install]
WantedBy=multi-user.target

Make sure this systemd service is enabled:

sudo systemctl enable /etc/systemd/system/channelguide.service

Lastly make sure you’ve configured the HDHRViewer plugin in Plex to use xmltv and rest API as per the how-to on their site.

Success!

Change the hostname on a Splunk Indexer

Recently I set about to change the hostname on a Splunk indexer. It should be pretty easy, right? Beware. It can be pretty nasty! Below is my experience.

I started with the basics.

  • hostname command
    hostname <newhostname>
  • Modify /etc/system/network to make it persistent (CentOS specific)
    sed -i 's/<old hostname>/<new hostname>/g' /etc/system/network
  • Inform Splunk of the hostname change
    sed -i 's/<old hostname>/<new hostname>/g' $SPLUNK_HOME/etc/system/local/server.conf
  • Restart Splunk

Sadly, that wasn’t the end of it. I noticed right away Splunk complained of a few things:

TcpOutputProc - Forwarding to indexer group default-autolb-group blocked for 300 seconds.
WARN TcpOutputFd - Connect to 10.0.0.10:9997 failed. Connection refused

Running

netstat -an | grep LISTEN

revealed that the server was not even listening on 9997 like it should be. I found this answer indicating it could be an issue with DNS tripping up on that server. I edited $SPLUNK_HOME/etc/system/local/inputs.conf with the following:

[splunktcp://9997]
connection_host = none

but I also noticed that after I ran the command a short time later it was no longer listening on 9997. Attempting to telnet from the forwarder to the indexer in question revealed the same results – works at first, then quit working. Meanwhile no events are getting stored on that indexer.

I was pulling my hair out trying to figure out what was happening. Finally I discovered this gem on Splunk Answers:

Are you using the deployment server in your environment? Is it possible your forwarders’ outputs.conf got deployed to your indexer?

On the indexer:
./splunk cmd btool outputs list –debug

Sure enough! after running

./splunk cmd btool outputs list --debug

I discovered this little gem of a stanza:

/opt/splunk/etc/apps/APP_Forwarders/default/outputs.conf [tcpout]

That shouldn’t’ have been there! Digging into my deployment server I discovered that I had a server class with a blacklist, that is, it included all deployment clients except some that I had listed. The blacklist had the old hostname, which meant when I changed the indexer’s hostname it no longer matched the blacklist and thus was deployed a forwarder’s configuration, causing a forwarding loop. My indexer was forwarding back to the forwarder everything it was getting from the forwarder, causing Splunk to shut down port 9997 on the offending indexer completely.

After getting all that set up I noticed Splunk was only returning searches from the indexers whose hostnames I had not changed. Everything looked good in the distributed search arena – status was OK on all indexers; yet I still was not getting any results from the indexer whose name I had changed, even though it was receiving events! This was turning into a problem. It was creating a blind spot.

Connections great, search status great, deployment status good.. I didn’t know what else to do. I finally thought to reload Splunk on the search head that had been talking to the server whose name I changed. Success! Something in the search head must have made it blind to the indexer once its name had changed. Simply restarting Splunk on the search head fixed it.

In short, if you’re crazy enough to change the name of one of your indexers in a distributed Splunk environment, make sure you do the following:

  • Change hostname on the OS
  • Change ServerName in Splunk config files
    • Add connection_host = none in inputs.conf (optional?)
  • Clean up your deployment server
    • Delete old hostname from clients phoning home
    • MAKE SURE the new hostname won’t be sucked up into an unwanted server class
  • Clean up your search head
    • Delete old hostname search peer
    • Add new hostname search peer
    • Restart search head
  • Profit
